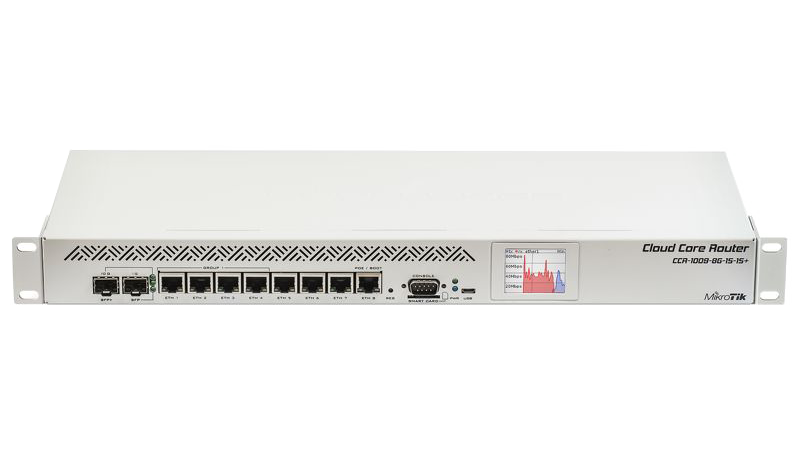

CCR1009-8G-1S-1S+

0.00 ₫ 0.00 ₫ 0.0 VND

Add to Cart


Free Shipping in Vietnam.

Feature

The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.

CCR1009-8G-1S-1S+ comes with 2GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), one SFP port and one SFP+ port with 10G support (SFP module not included).

CCR1009-8G-1S-1S+ model have dual power supplies built in for redundancy (if one power line fails, the other one will take over automatically).

Also, CCR1009-8G-1S-1S+ supports a Smart card, to store your private key for use in all features that support Certificate based authentication.

SFP+ port supports SFP (1.25G) modules as well.

Product Specifications

​Product code ​CCR1009-8G-1S-1S+
​CPU nominal frequency ​1.2 GHz
​CPU core count 9
​RAM ​2 GB
​10/100 Ethernet ports ​0
​10/100/1000 Ethernet ports 8
​SFP ports 1
​SFP+ ports ​1
​Serial port ​RS232
​MiniPCI slots ​0
​MiniPCI-e slots ​0
​Number of USB ports ​1
​USB slot type ​microUSB type AB
​Power Jack ​2
​Supported input voltage 14 V - 57 V
​PoE in ​No
​PoE out ​No
​Voltage Monitor ​Yes
​Current Monitor ​Yes
​CPU temperature monitor ​Yes
PCB temperature monitor ​Yes
​CPU Type TLR4-00980CG-10CE
​Operating System ​RouterOS
​License level ​6
​Operating temperature range -20C .. +60C
​Dimensions ​444x175x47mm
* Specificatons can be change without notification.
