CCR1016-12S-1S+
Free Shipping in Vietnam.
Feature

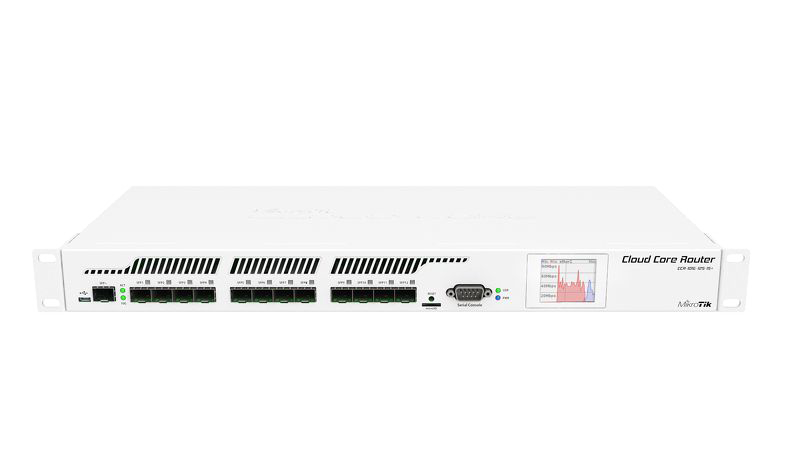

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Product Specifications
| Product code | CCR1016-12S-1S+ |
| CPU nominal frequency | 1.2 GHz |
| CPU core count | 16 |
| RAM | 2 GB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 0 |
| SFP ports | 12 |
| SFP+ ports | 1 |
| Serial port | RS232 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Power Jack | 2 |
| Supported input voltage | 24 V - 24 V |
| PoE in | No |
| PoE out | No |
| Voltage Monitor | Yes |
| Current Monitor | Yes |
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| CPU Type | TLR4-01680CG-12CE-A3a |
| Operating System | RouterOS |
| License level | 6 |
| Operating temperature range | -10C to +50C |
| Dimensions | 355x145x55cm |
