CCR1036-12G-4S-EM

0.00 ₫ 0.00 ₫ 0.0 VND

Add to Cart


Free Shipping in Vietnam.

Feature

CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance - this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits - full wire speed.

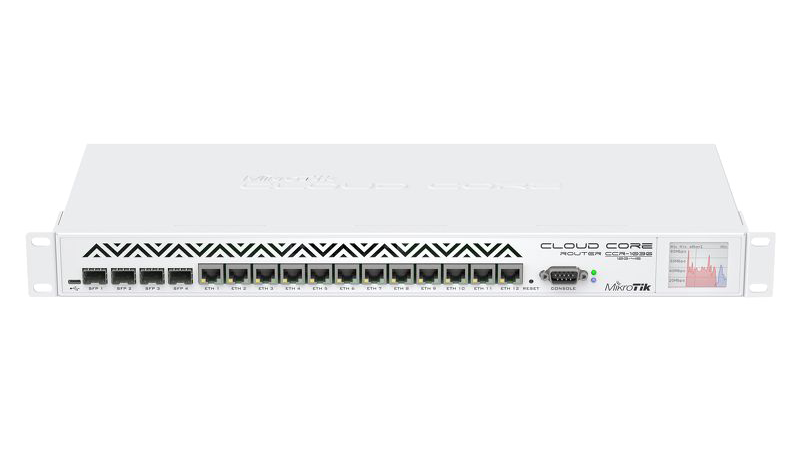

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.

It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Feature Title

​Product code ​CCR1036-12G-4S-EM
​CPU nominal frequency ​1.2 GHz
​CPU core count ​36
​RAM ​16 GB
​10/100 Ethernet ports ​0
​10/100/1000 Ethernet ports ​12
​SFP ports ​4
SFP+ ports ​0
​Serial port ​RS232
​MiniPCI slots ​0
​Number of USB ports ​1
​USB slot type ​microUSB type AB
​Power Jack ​1
​Supported input voltage ​12 V - 28 V
​PoE in ​No
​PoE out ​No
​Voltage Monitor ​Yes
​Current Monitor ​Yes
​CPU temperature monitor ​​Yes
​PCB temperature monitor ​​Yes
​CPU Type ​TLR4-03680CG-12CE-A3b
​Operating System ​RouterOS
​License level ​6
​Operating temperature range ​Max ambient temperature 50C @1.2Ghz; 70C @1Ghz CPU core frequency
​Dimensions ​355x145x55cm
* Specificatons can be change without notification.
