DynaDish 5
Free Shipping in Vietnam.
Feature

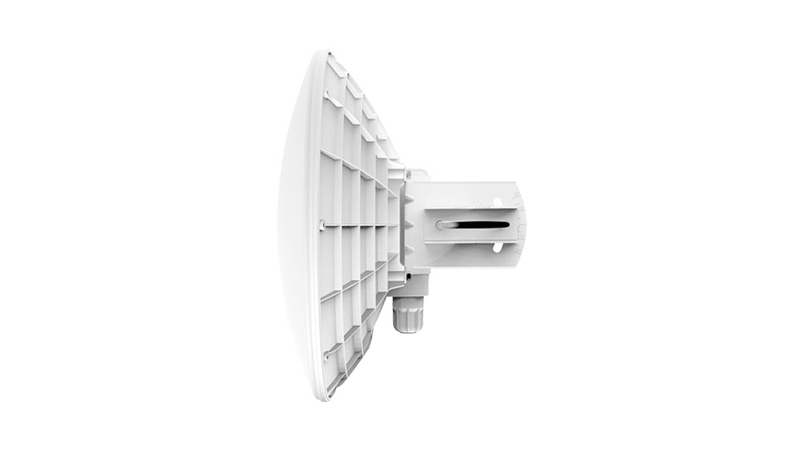

The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in it’s design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
Product Specifications
| Product code | RBDynaDishG-5HacD |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| RAM | 128 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 1 |
| SFP ports1 | 0 |
| SFP+ ports | 0 |
| Wireless chip model | QCA9882-BR4A-R |
| Wireless standards | 802.11a/n/ac |
| Number of chains | 2 |
| Antenna gain DBI | 25 |
| Serial port | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 0 |
| USB slot type | 0 |
| Power Jack | 0 |
| Supported input voltage | 11 V - 60 V |
| PoE in | 802.3at (only unshielded cable) or Passive PoE |
| PoE out | No |
| Voltage Monitor | Yes |
| Current Monitor | No |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| CPU Type | AR9344-BC2A |
| Operating System | RouterOS |
| License level | 3 |
| Operating temperature range | -40C to +70C |
| Dimensions | Ø 404mm, height 175mm (without mount) |
