mAP 2n
Free Shipping in Vietnam.
Feature

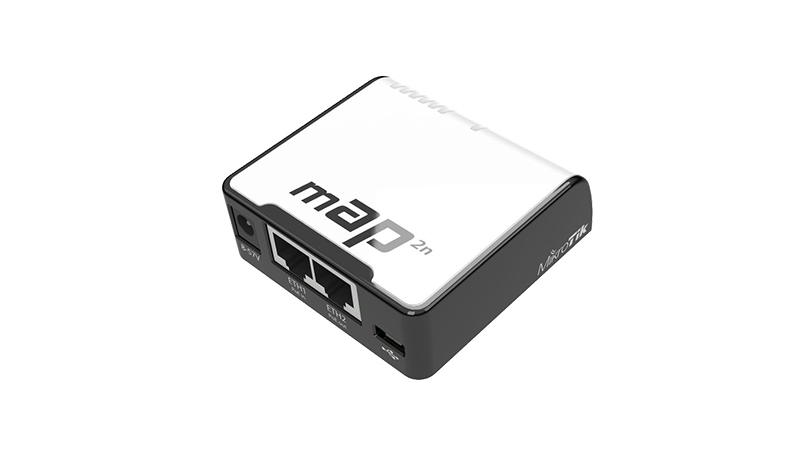

The mAP (micro Access Point) is a tiny size wireless 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
Product Specifications
| Product code | RBmAP2n |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| RAM | 64 MB |
| 10/100 Ethernet ports | 2 |
| 10/100/1000 Ethernet ports | 0 |
| SFP ports1 | 0 |
| SFP+ ports | 0 |
| Wireless chip model | AR9331-AL1A |
| Wireless standards | 802.11b/g/n |
| Number of chains | 1 |
| Antenna gain DBI | 1.2 |
| Serial port | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Power Jack | 1 |
| Supported input voltage | 10 V - 57 V |
| PoE in | Yes |
| PoE out | Yes |
| Voltage Monitor | No |
| Current Monitor | No |
| CPU temperature monitor | No |
| PCB temperature monitor | No |
| CPU Type | AR9344-DC3A |
| Operating System | RouterOS |
| License level | 4 |
| Operating temperature range | -10C to +70C |
| Dimensions | 68x68x19mm |
