RB2011UiAS-RM
Free Shipping in Vietnam.
Feature
The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.
The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.
RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)
There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.
Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

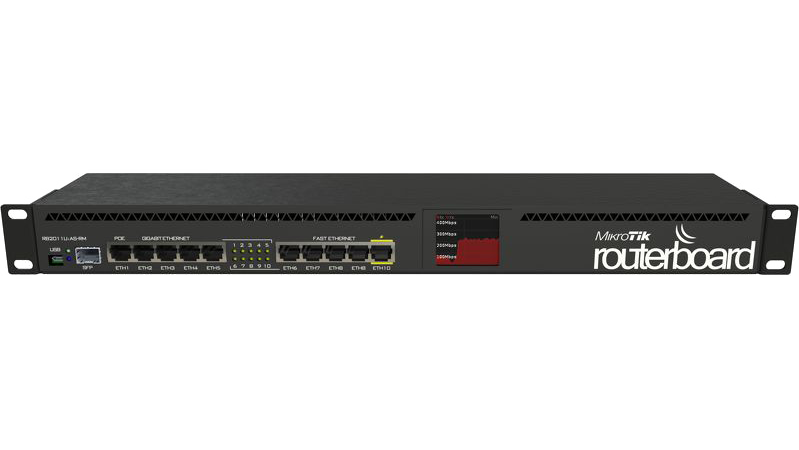

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.
Product Specifications
| Product code | RB2011UiAS-RM |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| RAM | 128 MB |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
| SFP ports | 1 |
| SFP+ ports | 0 |
| Serial port | RS232 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| USB slot type | microUSB type AB |
| Power Jack | 1 |
| Supported input voltage | 8 V - 30 V |
| PoE in | Yes |
| PoE out | Yes |
| Voltage Monitor | Yes |
| Current Monitor | No |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| CPU Type | AR9344-DC3A-R |
| Operating System | RouterOS |
| License level | 5 |
| Operating temperature range | -35C to +65C |
| Dimensions | 214mm x 86mm for PCB |
